Logs

All the applications' logs are being aggregated in the AWS CloudWatch Logs service. There are several ways to view them. Here you can find a few, most useful ways to view your logs. Don't forget to check AWS CloudWatch Logs Insights!

AWS CLI

You can tail your logs with AWS CLI v2 e.g.:

aws logs tail /ecs/staging/devopsbox-io/example-backend-app --follow

The log group name has the following format: /ecs/ENVIRONMENT_NAME/APPLICATION_NAME e.g. /ecs/staging/devopsbox-io/example-backend-app

Please refer to the AWS documentation for all the available options: https://awscli.amazonaws.com/v2/documentation/api/latest/reference/logs/tail.html

ECS console

You can view your logs directly in the AWS ECS console. To do this you first have to find your application's ECS service:

  • Find and select the ECS console:

    Find AWS ECS service

  • Select an appropriate ECS cluster:

    Select ECS cluster

  • Find and select your ECS service. The name starts with your application's name ( e.g. devopsbox-io-example-backend-app) and environment name (e.g. staging), all the . and / characters are replaced with -:

    Select ECS service

Service

You can view logs directly on the ECS service page. On this view you can view logs of all application's containers, filter a single container or even filter the log messages. You just have to select the "Logs" tab:

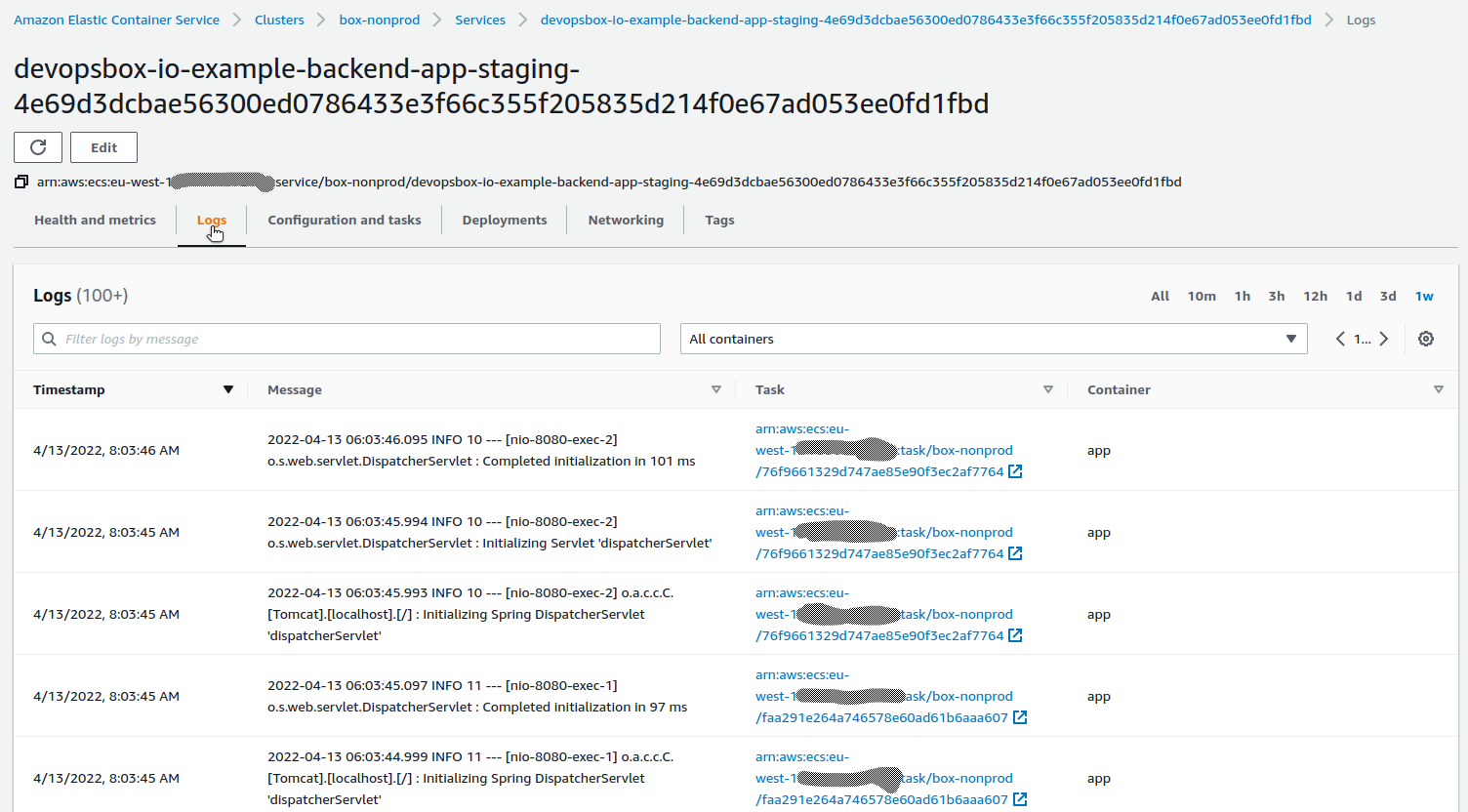

ECS service logs

Task

If you want to view logs of a single task, you have to:

  • Go to the "Configuration and tasks" tab and select a task:

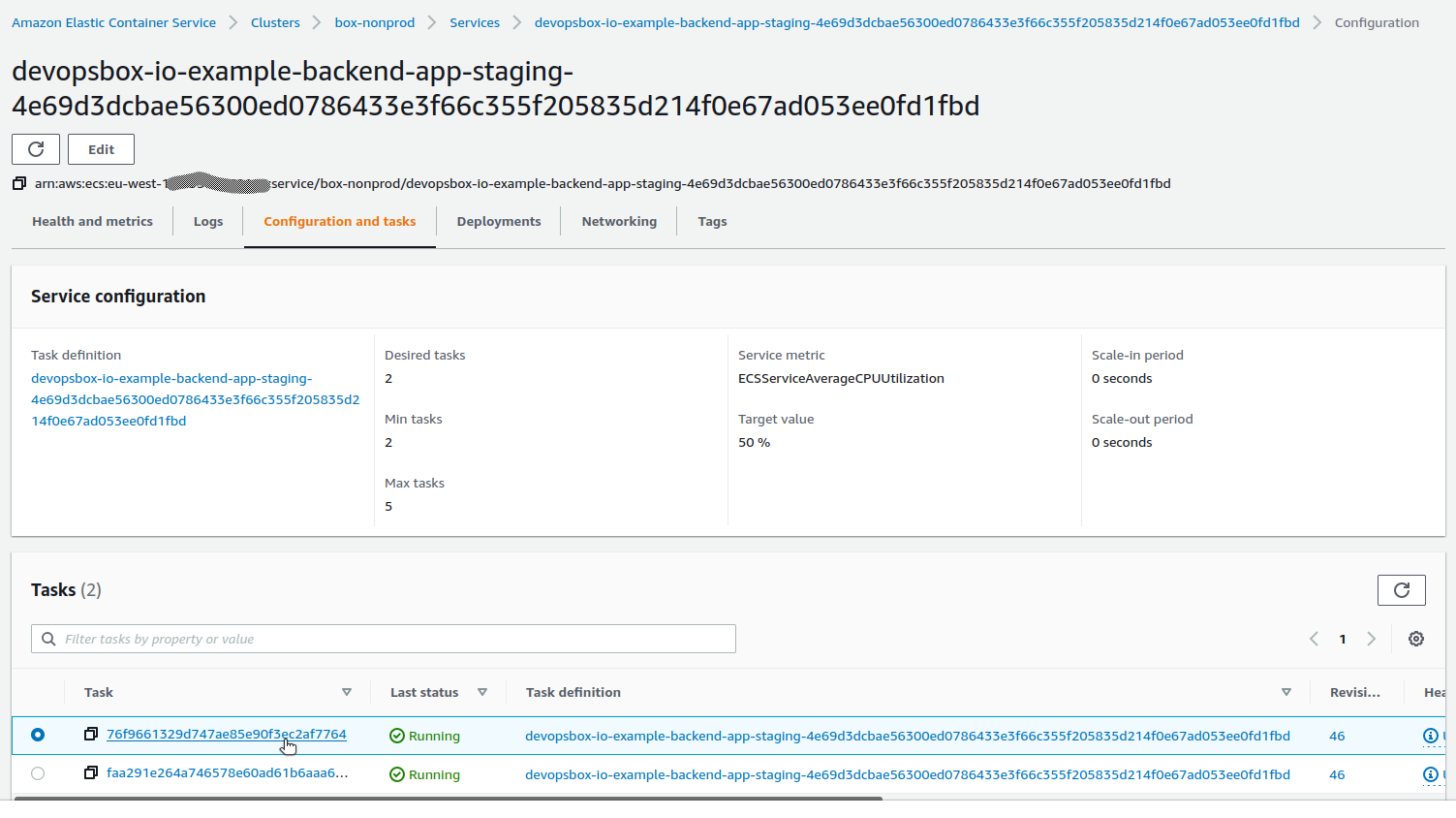

    Select ECS task

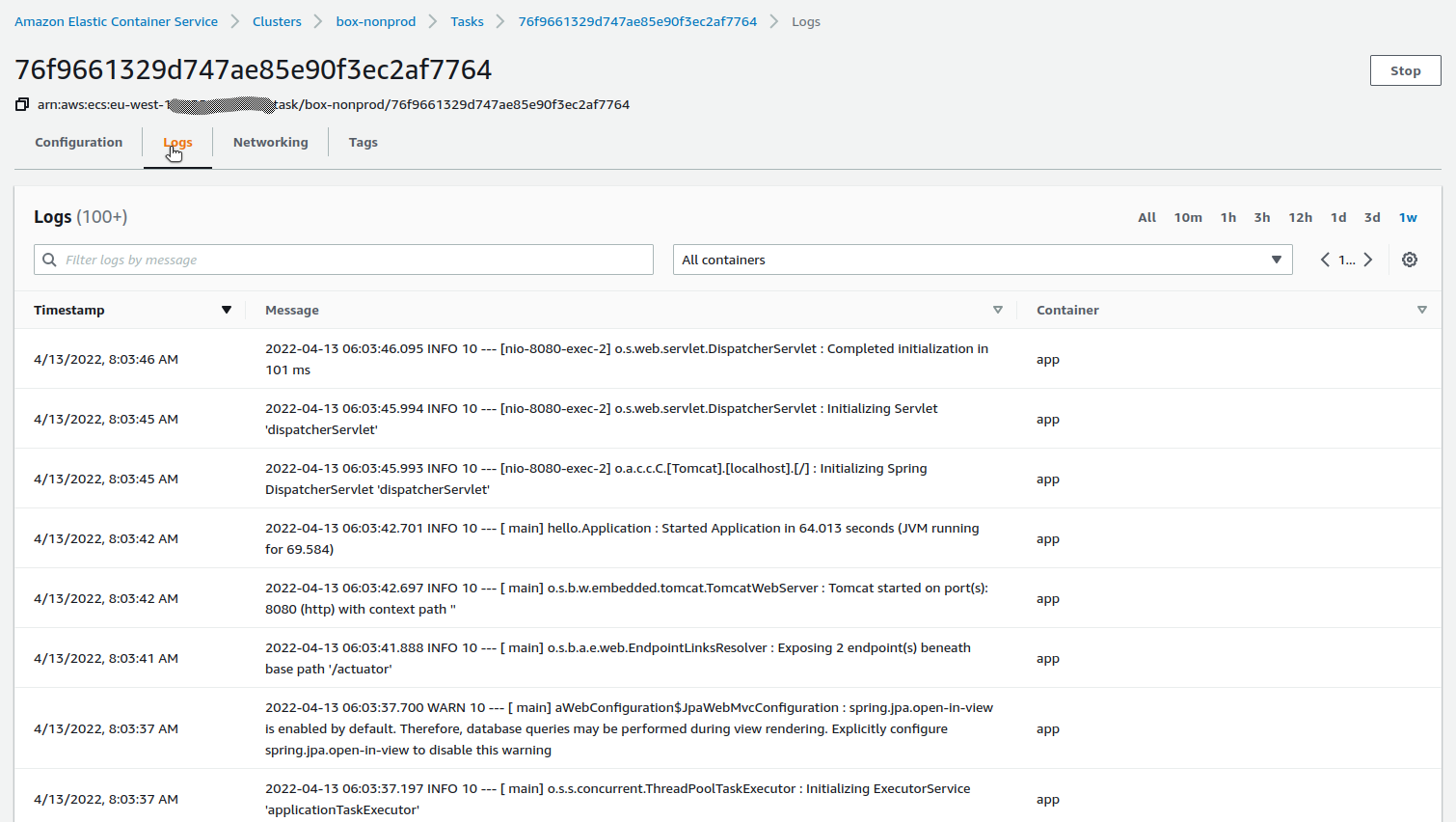

  • Select the "Logs" tab:

    ECS task logs

  • You can filter the log messages on this view.

CloudWatch

There are two ways to view logs in the AWS CloudWatch console: "traditional" log groups view and CloudWatch Logs Insights. To use any of them first you have to find the CloudWatch service in your AWS console:

Find AWS CloudWatch service

Log groups view

You can use the "Log groups" page to view your logs:

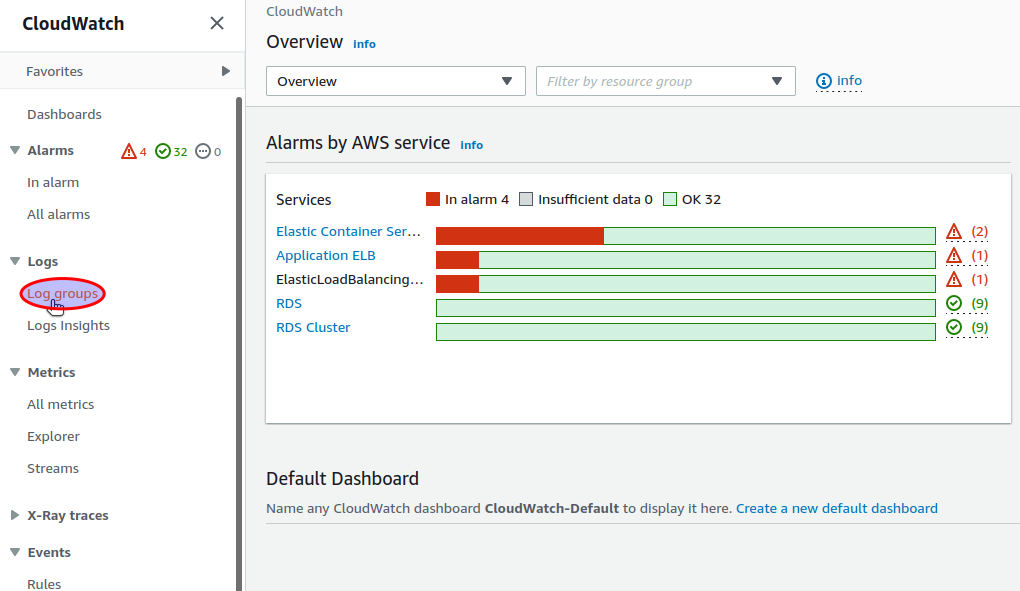

  • Select the "Log groups" menu item:

    Select AWS CloudWatch "Log groups"

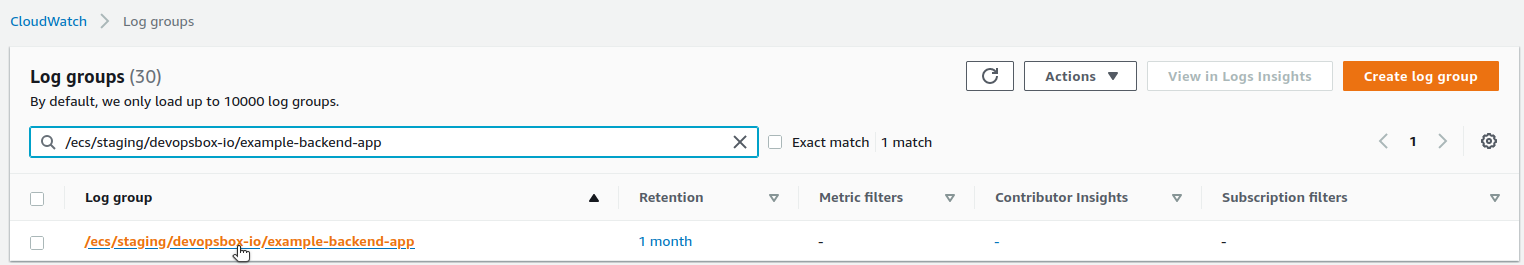

  • Find and select your log group. The name has the following format: /ecs/ENVIRONMENT_NAME/APPLICATION_NAME e.g. /ecs/staging/devopsbox-io/example-backend-app:

    Select AWS CloudWatch log group

All tasks

You can view logs of all the tasks run by your application's ECS service.

  • You have to select the "Search all" option:

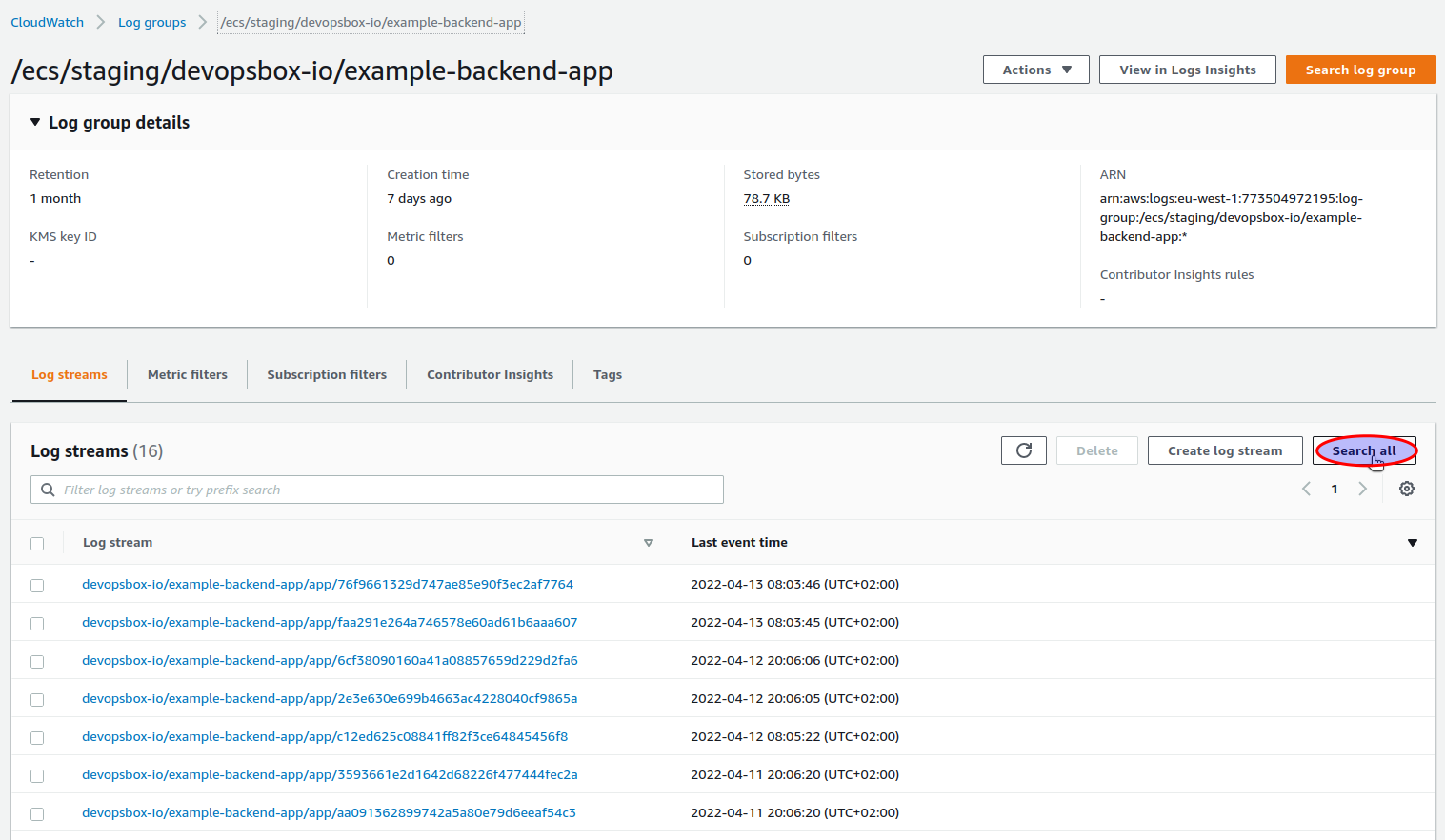

    Select AWS CloudWatch search all

  • Here you can view the logs of all application's containers, select a single ECS task or even filter the log messages:

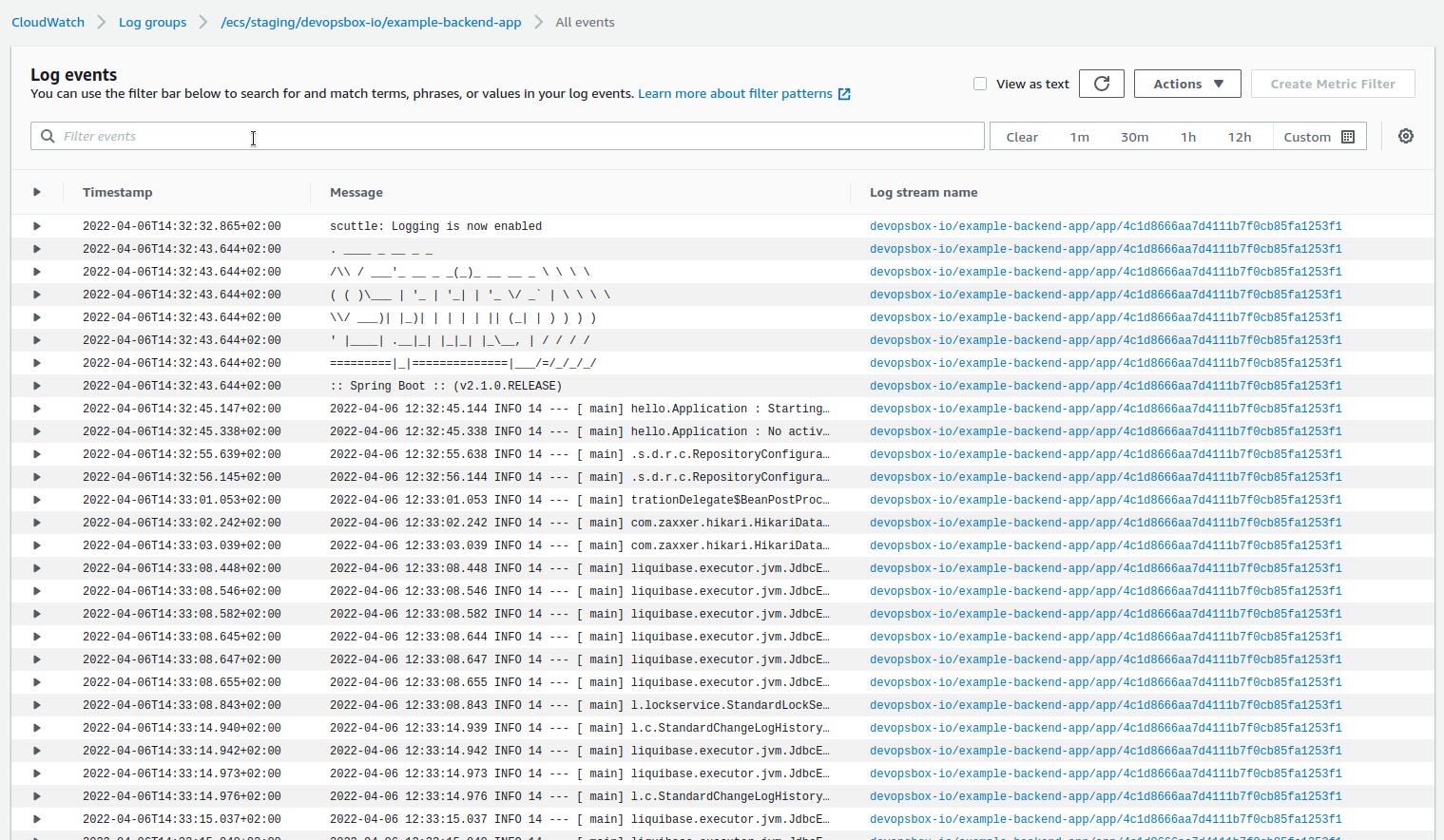

    AWS CloudWatch search all

Single task

You can view the logs of a single task.

  • First you have to select an appropriate log stream. The name format is APPLICATION_NAME/CONTAINER_NAME/TASK_ID e.g. devopsbox-io/example-backend-app/app/76f9661329d747ae85e90f3ec2af7764:

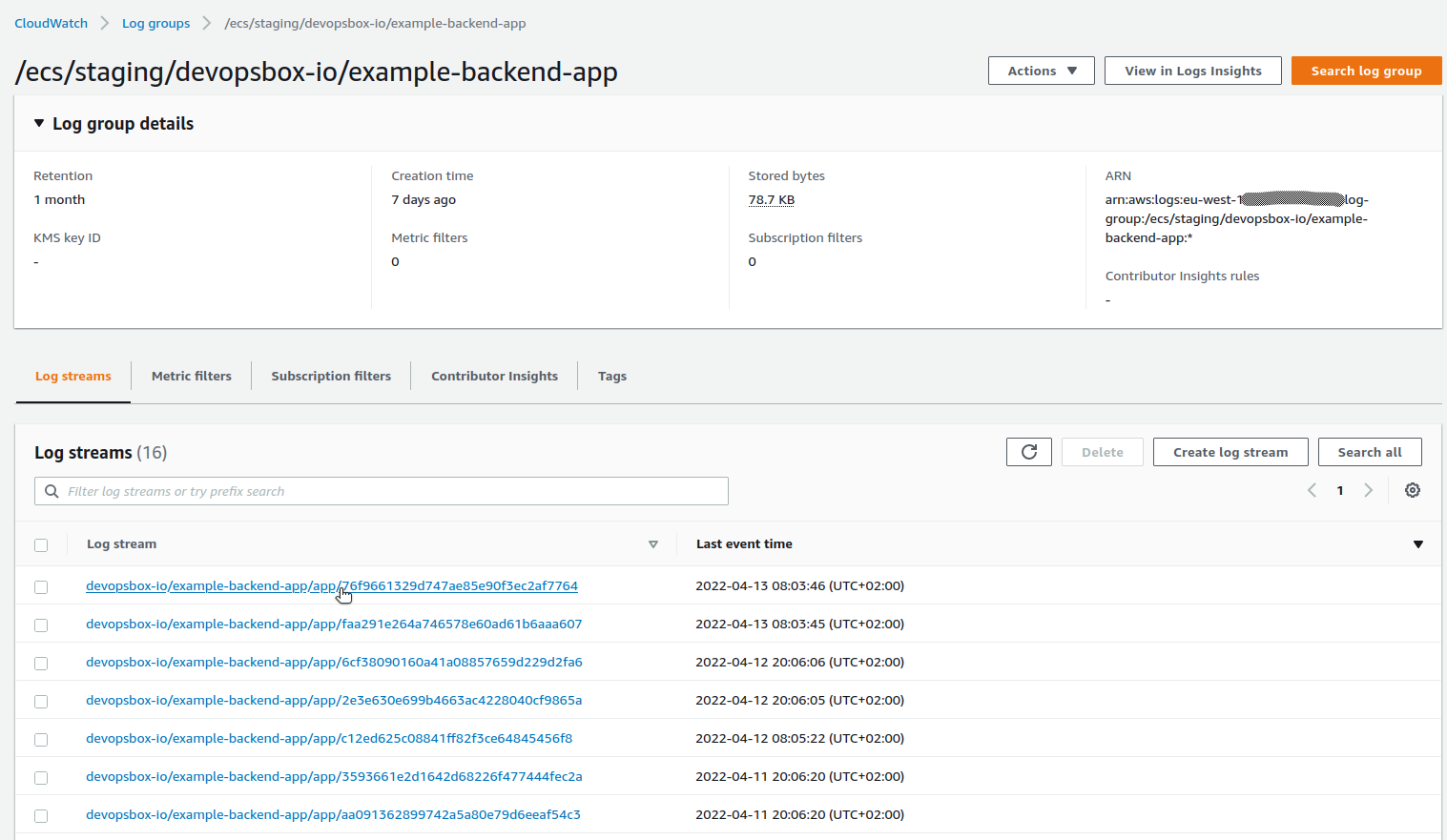

    Select AWS CloudWatch log stream

  • The logs view will be opened:

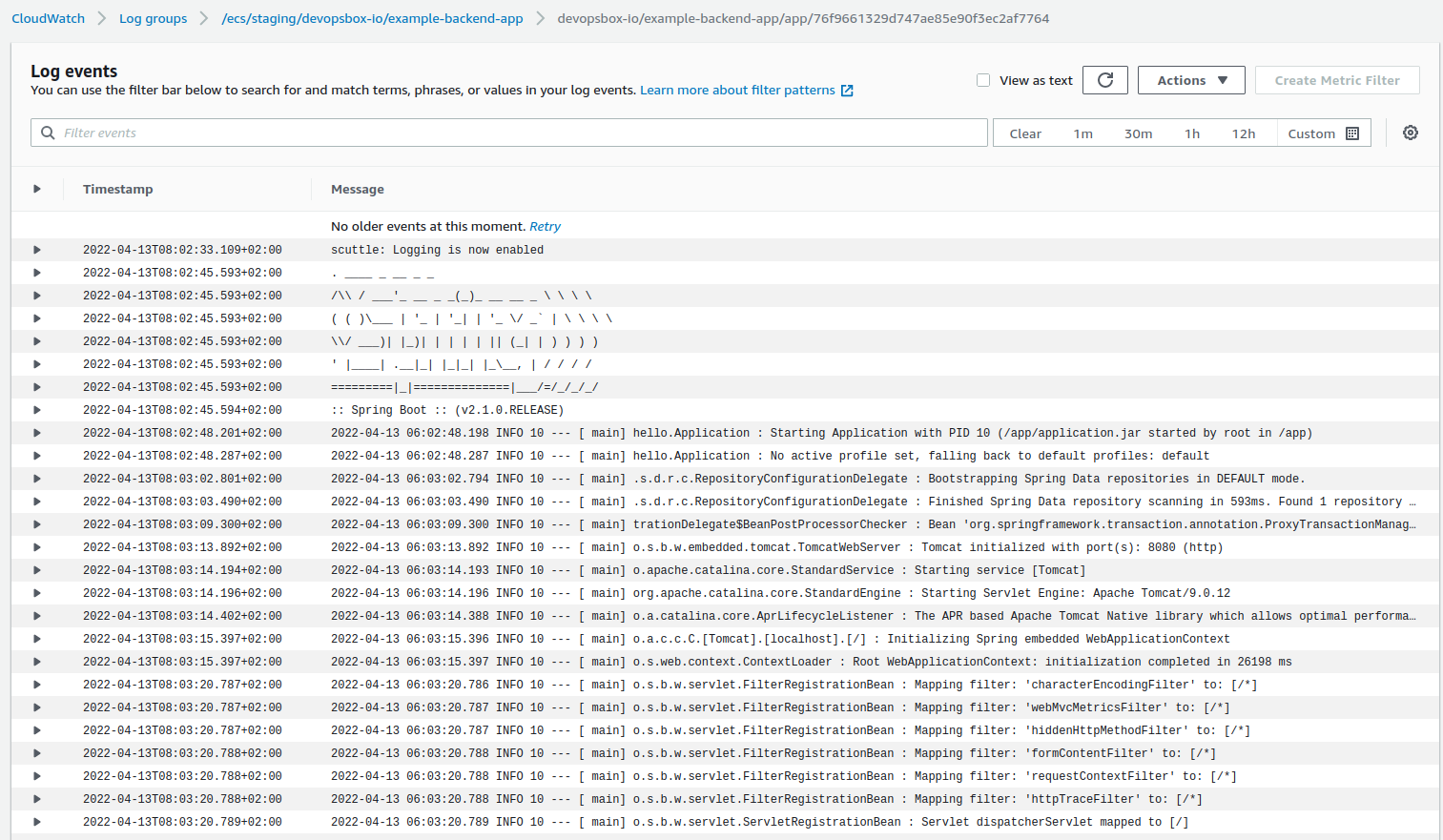

    AWS CloudWatch log stream

  • You can filter the log messages on this view.

Logs Insights

AWS CloudWatch Logs Insights is the most powerful way to view your logs in CloudWatch. It has its own query language: https://docs.aws.amazon.com/AmazonCloudWatch/latest/logs/CWL_QuerySyntax.html. To query you logs using Logs Insights you have to:

  • Select the "Logs Insights" menu item:

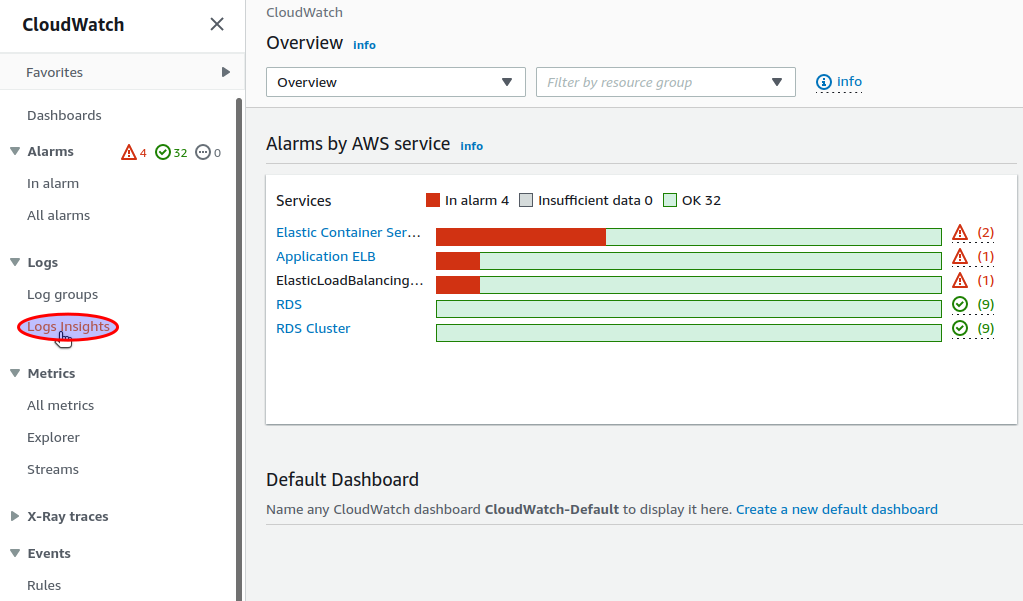

    Select AWS CloudWatch "Logs Insights"

  • Find and select your log group. The name has the following format: /ecs/ENVIRONMENT_NAME/APPLICATION_NAME e.g. /ecs/staging/devopsbox-io/example-backend-app:

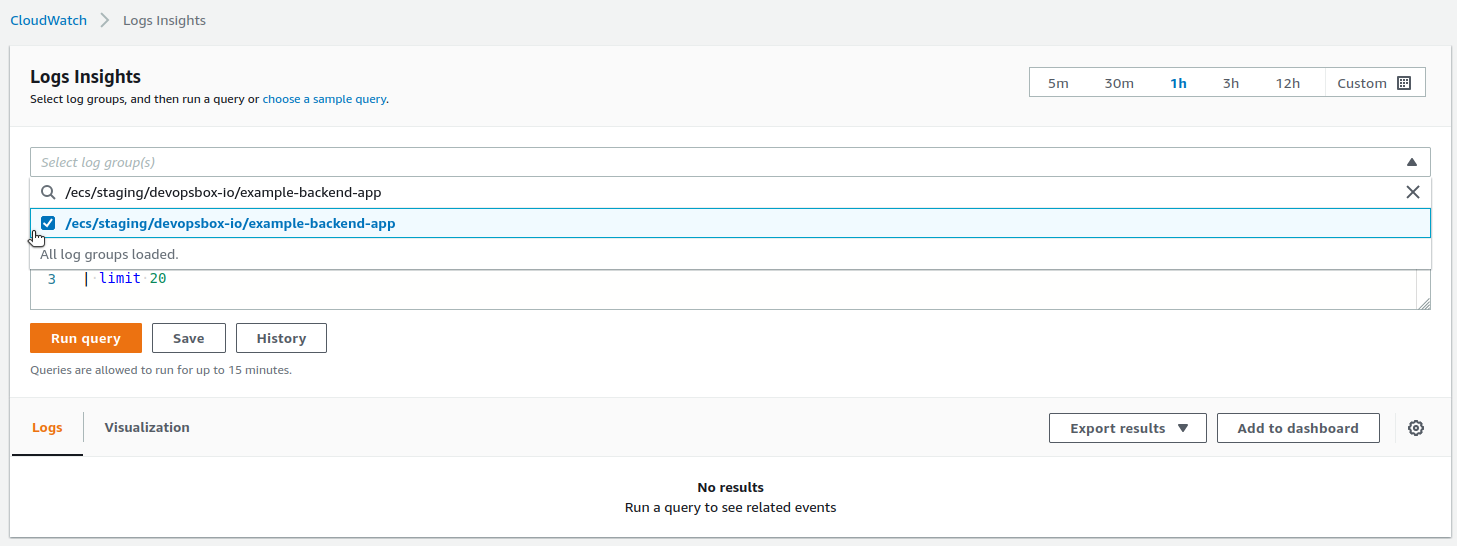

    Select AWS CloudWatch log group

  • You can now write and run your queries.

Logs Insights query examples

  • Filter out health check access logs:
fields @timestamp, @message
| filter @message not like "GET /actuator/health HTTP/1.1"
| sort @timestamp desc
| limit 20
  • Link to the CloudWatch logs to view surrounding logs:
fields @timestamp, @message, @logStream
| sort @timestamp desc
| limit 100

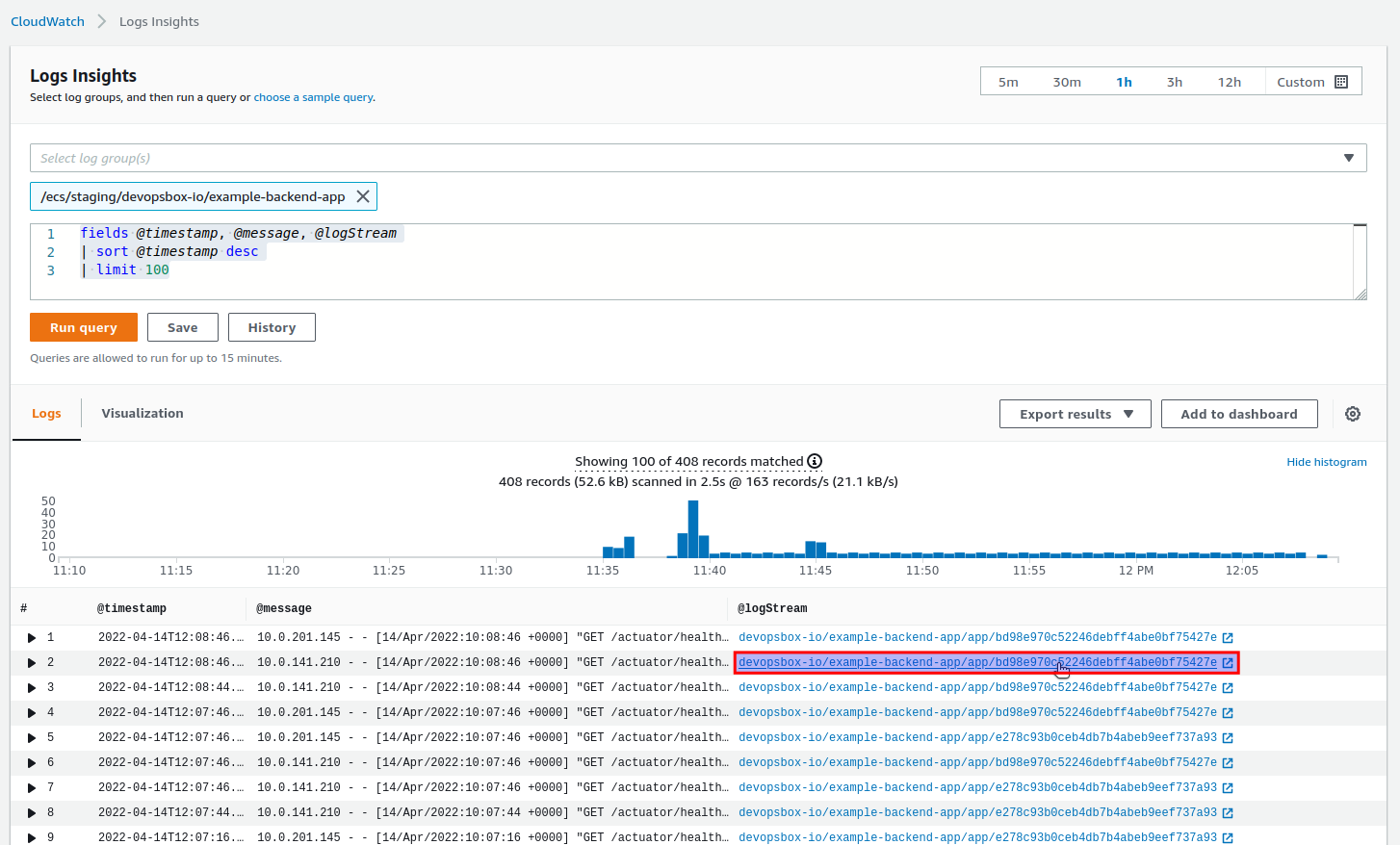

After running the above query, you can click the @logStream and you will be redirected to the CloudWatch Log groups view with the right date filter:

Select AWS CloudWatch log stream
